      2023-02-26 at 16:09
      Post count: 5
      #3880

      Display STWI070WT-41. I’m trying to connect to Arduino. It is possible to send data to the display, but the panel does not send anything to the Arduino. Connected like this: HMI | Arduino RXP DI <-> TX TXP DO <-> RX GND <-> GND TTL welding pad connected. No TTL signal on TXP DO. Tell me, please, what I’m doing wrong.

    • bowei zhangbowei zhang
      Participant
      @zbw3366
      2023-02-27 at 13:50
      Post count: 62
      #3881

      Maybe you need to change the screen to a TTL signal, you can refer to the manual, or take a picture of the back of the screen to show me

    • dekonerdekoner
      Participant
      @dekoner
      2023-02-28 at 23:47
      Post count: 5
      #3884

      I switched the screen to TTL signal at the very beginning, but it does not send me data.

      Attachments:
      You must be logged in to view attached files.
    • bowei zhangbowei zhang
      Participant
      @zbw3366
      2023-03-01 at 17:17
      Post count: 62
      #3898

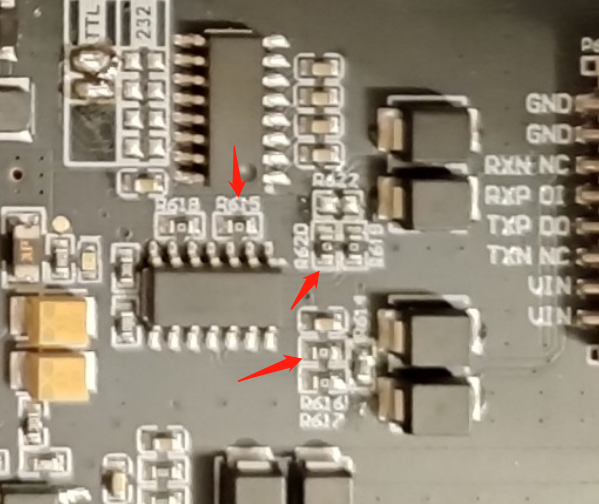

      Please remove the three resistors marked by the arrows in the figure.

    • dekonerdekoner
      Participant
      @dekoner
      2023-03-05 at 00:14
      Post count: 5
      #3919

      That helped. Thank you
